WSERV-0040

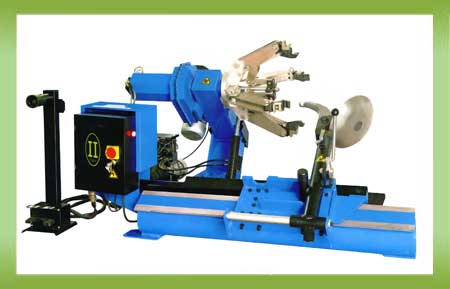

 TRUCK TYRE CHANGER

II-650



Applicable to 14" -26"
Suitable for various tires of large vehicle, applicable to tyres with ring and layering, the meridian vacuum tire, the agriculture uses the tires, such as the machine and the engineering machine ...etc.
It can save human resource, work time and energy with high. efficiency. Mo need to strike the tyres with big hammers, no damage to wheel and rim. Really an ideal choice for tyre repairing & maintenance equipment.                                                                       Mount/Demount arm enables the work easy and relaxing .                                         The modern wireless remote-control makes the operation much more convenient.    Operating Voltage 24V, safe & Stable









Application range Truck/bus/tractor/industry vehicle Min. Inner Diameter of Rim 130-510mm
Max. Wheel Weight 500kg Max. Sliding Distance of Mount/Demount Arm 48" (1214mm)
Max. Wheel Width 780mm Operation Voltage 24V
Max. Outer Diameter of Tyre 1600mm Rotation Speed

          7.34RPM

Clamping Range 14" -26" (355-66.4mm) Bead-Loosening Force

          2500Kg

Driving Power of Hydraulic Pump 1.1/kw380v-3PH Working Pressure

      (13MPa-20MPa)

Driving power of Gear Motor 1.8Kw380v-3PH Clamping Force 4000Kg
N.W./G.W. 585kg/640kg Noise <70Db
