Dryers

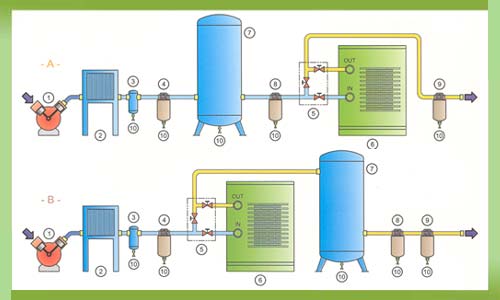

1. Air Compressors.

2. After cooler Unit.

3. Condenser Separator.

4. Pre-filter.

5.By-pass Group.

6. Dryers.

7. Compressed Air Tank.

8. Intermediate Filter.

9. Final Filter.

10. Condensate Drain.

Type A.
Insulation is suggested when the compressor operates at reduced intermittence and the total consumption equal the compressor flow rate.

Type B.
Insulation is suggested when the air consumption can consistently change with peak values highly exchange the flow rate compressor. The capacity of the tank must be sized in order to compensate eventual instantaneous demanding conditions (peak air consumption).

Technical Features & Dimension of Dryers

Model	Model	Flow Rate			Connection	Dimension [mm]						Weight
R134a	R404A	l/min	Nm³/h	Scfm	IN - OUT	A	B	C	D	E	F	Kg
ACOMP-0660	-	350	21	12	1/2" BSF -F	505	450	540	50	210	210	34
ACOMP-0670	-	550	33	19	1/2" BSF -F	505	450	540	50	210	210	37
ACOMP-0680	ACOMP-0680	850	51	30	3/4" BSF -F	505	450	540	50	210	210	39
ACOMP-0690	ACOMP-0690	1100	66	39	3/4" BSF -F	505	450	540	50	210	210	41
ACOMP-0700	ACOMP-0700	1800	108	64	3/4" BSF -F	505	450	540	50	210	210	43
ACOMP-0710	ACOMP-0710	2300	138	81	1" BSF -F	505	450	540	50	210	210	45
ACOMP-0720	ACOMP-0720	3100	186	109	1" BSF -F	635	540	670	75	260	290	57
ACOMP-0730	ACOMP-0730	4300	258	152	1.1/4" BSF -F	805	590	820	80	290	420	76
ACOMP-0740	ACOMP-0740	5200	312	184	1.1/2" BSF -F	805	590	820	80	290	420	94
ACOMP-0750	ACOMP-0750	6100	366	215	2" BSF -F	805	590	820	50	290	420	102
ACOMP-0760	ACOMP-0760	7500	450	265	2" BSF -F	805	590	820	80	290	420	105
ACOMP-0780	ACOMP-0780	9800	588	346	2" BSF -F	900	600	1150	115	400	200	210
ACOMP-0790	ACOMP-0790	11800	708	417	2.1/2" BSF -F	900	600	1150	115	400	200	240
ACOMP-0800	ACOMP-0800	13800	828	487	2.1/2" BSF -F	1100	800	1600	145	500	270	240
ACOMP-0810	ACOMP-0810	16800	1008	593	2.1/2" BSF -F	1100	800	1600	145	500	270	290
ACOMP-0820	ACOMP-0820	18000	1080	636	2.1/2" BSF -F	1100	800	1600	145	500	270	300
ACOMP-0830	ACOMP-0830	21000	1260	742	DN80 -PN16	1100	800	1600	145	500	270	320
ACOMP-0840	ACOMP-0840	26000	1560	918	DN80 -PN16	1100	800	1600	145	500	270	370
ACOMP-0850	ACOMP-0850	31500	1890	1112	DN80 -PN16	1100	800	1600	145	500	270	450
ACOMP-0890	ACOMP-0890	42000	2520	1483	DN100 -PN16	1380	1000	1750	180	500	315	510
ACOMP-0900	ACOMP-0900	51500	3090	1819	DN100 -PN16	1380	1000	1750	180	500	315	570
ACOMP-0910	ACOMP-0910	60500	3630	2137	DN100 -PN16	1380	1000	1750	180	500	315	580
