Hand Pallet Track




ILIFT-0200B2, 0210B2





Model

  ILIFT-0200B2 ILIFT-0210B2
Capacity Kg 2000 3000
Max. Fork Height mm 200
Min. Fork Height mm 85
Fork Length mm 1150 1220
Width Overall Forks mm 520 685
Individual Fork Width mm 150
Load Roller Diameter mm 80 Nylon, Polyurethane
Streering Wheel Diameter mm 200 Nylon, Polyurethane, Rubber

Net Weight

Kg 80 85
Quantities/20' Container pcs 180 144

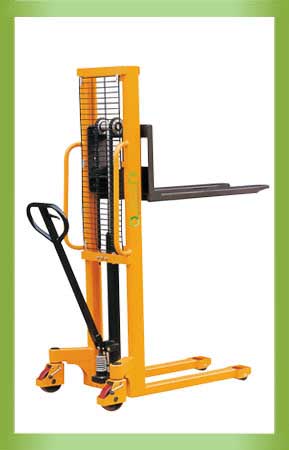

  Hand Hydraulic Elevator



Model

  ILIFT-420S15 ILIFT-430S25
Capacity Kg 1000 1000
  load Centre  (C) mm 585 585
Max. Fork Height(H) m 1500 2500
lowered Fork Heigh(h) mm 88 88
Fork Length  (L) Kg 1150 1150
Fork Width   (D) mm 160 160
Overall Fork Widt(W) mm 540 540
Lifting Height Per Stroke mm 12.5 12.5
Ground Clearanc (X) mm 24 24
Min. Tuming Redius(out side) mm 1086 1086
Front Load Roller mm r80x70 r80x70
Streeting Wheel mm r150x50 r150x50
Overall Length mm 1604 1604
Overall Width (A) mm 760 760
Overall height (B) mm 1964 1964
Net Weight (F) Kg 220 330
